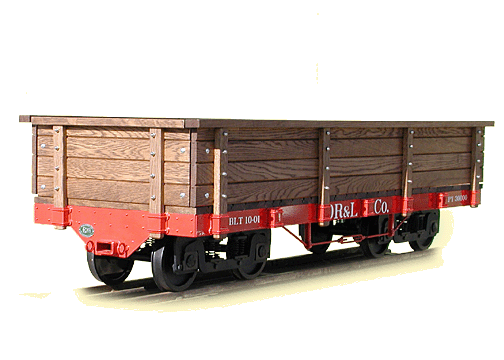

Wood Side Gondola

Narrow Gauge Wood Side Gondola in 2.5" and 3.75" Scale

Wood Side Gondola
Featuring all steel construction (except for solid oak decks), these cars have the correct outline of their wooden prototypes. This construction guarantees a long life of heavy use, with little regard for adverse weather. Stake pockets and truss-rod bracing are standard. These cars can be lettered for your favorite railroad.
Wood Side Gondola Features
Wood Side Gondola Title
Wood Side Gondola Thumbnail
  • Wood Style with Truss Rods
  • Oak deck and sides
  • 5', 6', 7' or 8' lengths
  • Equalized trucks with 6" wheels
  • Safety chain eyes
  • Options:
    • Train Mountain Knuckle Couplers
    • Premium Decal Package
    • Seating styles
    • Available in a variety of colors
    • Air Brakes

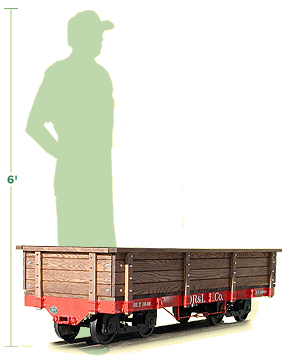

Wood Side Gondola vs Man Size Comparison
Wood Side Gondola Specifications
Specifications Dimensions
Length 5', 6', 7', or 8'
Width 20" to wood (22" to stake pockets)
Height 15" with sides (9" without)
Weight 100-200 lbs.

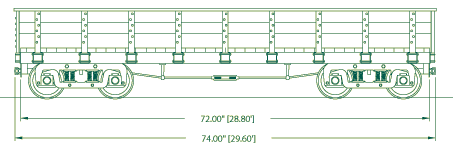

Wood side gondola drawing
Back to Freight Cars
