Jersey Central #1000 Box Cab

Gas / Propane / Diesel Hydraulic or Electric Powered - 2.5" or 3.75" Scale

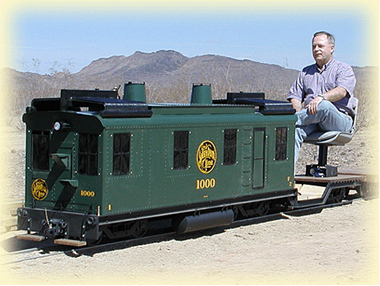

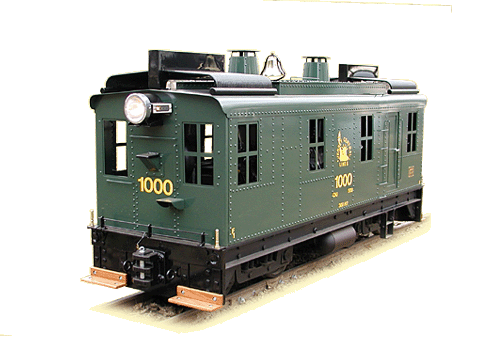

Jersey Central #1000 Box Cab Locomotive

Early non-steam (oil/gasoline/diesel or pure electric) engines were often built using car body technology. This style locomotive is called a box cab. Our model recalls an Alco-GE-Ingersoll-Rand 300-hp switcher, one of the earliest successful box cabs.

The RMI JC-1000 box cab is available in either 2.5" scale with either electric drive or 9 HP Honda gas powered or 3.75" E scale which can also be electric powered or by a 22 HP Kubota Gas, Propane or Diesel engine.

Jersey Central #1000 Box Cab Locomotive Features

JC-1000 Box Cab E-Scale View
3.75" E Scale
  • Solid riveted cab
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • 2.5" or 3.75" E Scale
  • Options:
    • Premium Sound System
    • Control Stalk
    • 9 hp electric start gas engine with hydro-static drive system
    • Battery Charger
    • Knuckle Couplers
    • 7.25", 7.5" or 12" Gauge (E scale only)

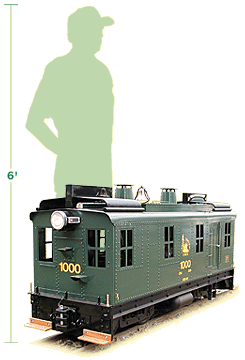

Jersey Central #1000 Box Cab Locomotive Specifications Jersey Central #1000 Box Cab Locomotive vs man size comparison
Standard Features 2.5" Scale 3.75" E Scale
Number of 5/8 HP motors 2 4
Powered Axles 4 4
Power Module Rating 160 Amp 160 Amp
Battery Positions 2, 4, or 6 4,6,8
Length 59" 87"
Width 20" 24"
Height 25" 33"
Approx. Wt. w/o Batteries 305 lbs. 600 lbs.
Approx. Wt. w/ Batteries 380-530 lbs. 700-900 lbs
  Also available as a gas/hydraulic unit powered by a Honda 9 hp electric-start engine, hydrostatic pump and two hydraulic motors. Also available as a hydraulic unit powered by a gas/propane/diesel Kubota 22hp electric-start engine, hydrostatic pump and two hydraulic motors.

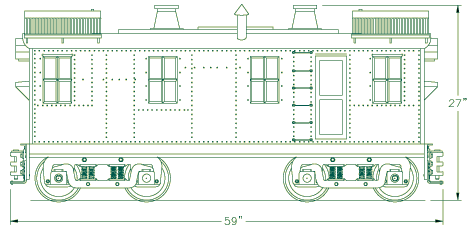

JC-1000 Box Cab Drawing JC-1000 Box Cab End View Drawing
