Riveted Steel Side Gondola

Narrow Gauge Steel Side Gondola in 2.5" and 3.75" Scale
with Oak Upper Section

These cars have hundreds of hand set steel rivets just like their prototypes. The side frames have a deep section center for the heaviest loads. Multiple heavy-duty stake pockets and our most rugged trucks make these RMI's most capable heavy haulers. Available in lengths from 6' to 12', we offer a car for every purpose.
Steel Side Gondola Features
Steel Side Gondola Title
Steel Side Gondola Thumbnail
  • Riveted steel plate style
  • Oak deck and sides
  • 5', 6', 7' or 8' lengths
  • Equalized trucks with 6" wheels
  • All steel stake pockets
  • Safety chain eyes­Standard
  • Options:
    • Train Mountain Knuckle Couplers
    • Premium Decal Package
    • Seating styles
    • Available in a variety of colors

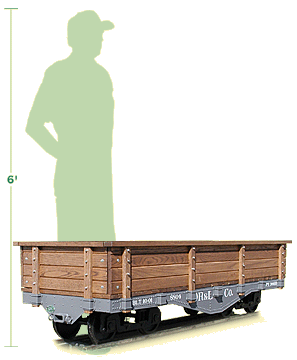

Steel Side Gondola Vs Man Size Comparison
 Steel Side Gondola Specifications
Specifications Dimensions
Length 5', 6', 7', 8', 10' or 12'
Width 20" to wood (22" to stake pockets, 2.5" Scale)
Height 15" with sides (9" without)
Weight 100-250 lbs.

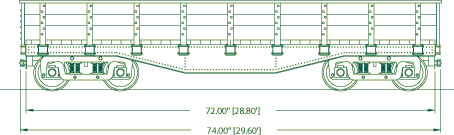

Steel Side Gondola Drawing
