Sweet Creek Mogul Live Steam Locomotive

Live Steam Fired Locomotive or Steam Outline Electric

 Sweet Creek Mogul Live Steam Locomotive

When narrow gauge railroads began to thrive and expand, their operating departments felt the need for larger, more capable locomotives to handle heavier loads over longer distances. To fill this need, Baldwin built many Mogul class locomotives for passenger, freight, plantation, and mining service. These engines were sold around the world, and some are still in service.

Sweet Creek is an excellent example of this type of locomotive. The ride is exceptional and extremely realistic. A heavy-duty, 2-6-0 Mogul, it is built in 3 3/4" scale and runs on 7 1/2" or 7 1/4" gauge track. Sweet Creek is a large locomotive; the operator sits in, not on, the tender, allowing easy access to all controls, even for the largest scale engineers. It is the ultimate club/estate engine, capable of hauling very heavy loads up steep grades for prolonged periods.

Building Sweet Creek will provide hours of pleasure. The simple, robust design means parts are easy to produce and handle. For those with limited machining facilities or limited time, machined parts or complete locomotives are available. The Sweet Creek is also available for indoor operation by using our electric powered tender. Perfect for shopping malls and indoor events.

For the ultimate live steam experience, you must run a Sweet Creek!

Sweet Creek Features

Sweet Creek Mogul Live Steam Locomotive
  • 3 3/4" scale power house
  • Designed for heavy, continuous duty
  • Built of the finest materials
  • Available as individual parts, kits, or ready-to-fire
  • Produced by the most modern techniques
  • Runs comfortably on normal railroads
  • Spacious, ride-in tender
  • Free steaming Water Legs style boiler


 Sweet Creek Specifications

Standard Features

Sweet Creek 2-6-0

Slide Valve Cylinders 3" (76mm) x 4" 100mm) stroke
Drive Wheels 10" (250mm) diameter
Pony and Tender Wheels 6" (150mm) diameter
Overall Length (loco&tender) 160" (4000mm) diameter
Overall Width (loco&tender) 28" (712mm) diameter
Overall Height (loco&tender) 42" (1066mm) diameter
Water Leg Style Boiler 120 psi pressure, 10" (250mm) diameter
Valve Gear Walschaerts
Minimum Radius Curve 40' (12 m), 60' (18 m) recommended
Weight of Locomotive 1540 lbs. (700kg) (in working order)

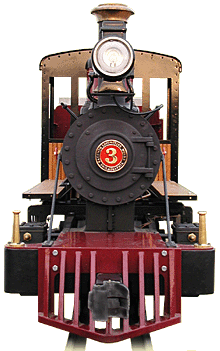

Sweet Creek Locomotive Front View
Sweet Creek Mogul Locomotive Quarter View

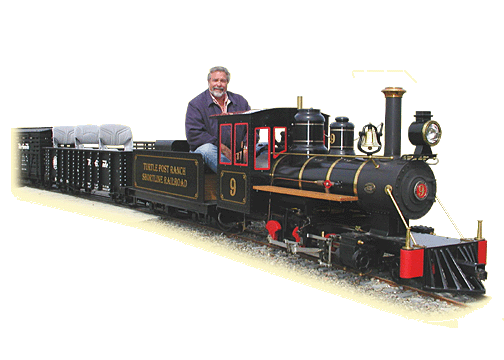

Sweet Creek Locomotive shown with engineer

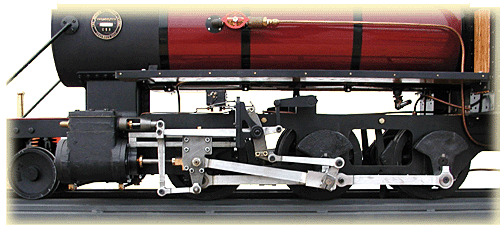

Sweet Creek Locomotive Running Gear
