35 Ton Switcher Locomotive

2.5" Scale 35 Ton Narrow Gauge Switching Locomotive, Electric Powered

35 Ton Narrow Gauge Switching Locomotive
The 35-45 Ton 0-4-0's and 0-6-0's locomotives were typically the heaviest switchers built on a rigid frame. They were equally at home in steel mills, industrial plants, terminal service, and lumber yards. Although many people identify the center-cab configuration as typically European, this is not at all true. Center-cab locomotives have been built and used in large numbers in the United States since the earliest days of internal combustion, engine powered locomotives.
features

35 Ton Locomotive
  • Solid riveted cab
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:

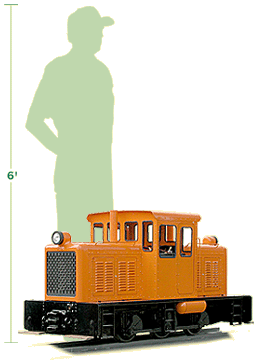

locomotive vs man size comparison
Standard Features 0-4-0 0-6-0
Number of 5/8 HP motors 2 2
Powered Axles 2 3
Power Module Rating 160 Amp 160 Amp
Battery Positions 2, 4, or 6 2, 4, or 6
Length 49" 49"
Width 20" 20"
Height 26" 26"
Approx.Wt. w/o Batteries 220 lbs. 225 lbs.
Approx. Wt. w/ Batteries 295-445 lbs. 330-480 lbs.
