70 Ton Switcher Locomotive

2.5" or 3.75" E Scale 70 Ton Narrow Gauge Switching Locomotive
Electric or Gas/Propane/Diesel Hydraulic Powered

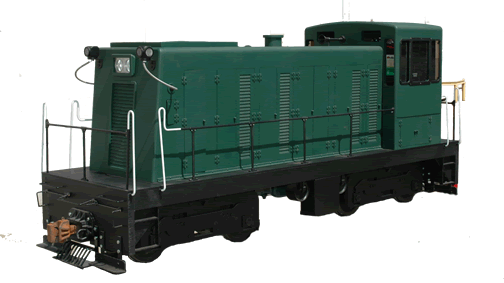

GE 70 Ton Switching Locomotive

The G.E. line of small diesel switchers were (and still are) very popular with industrial and short line railroads. The 70 Ton models were particularly versatile. The were produced in 24” narrow gauge to 66” broad gauge. Most were B-B truck configuration, but some C-C Types were built. We are proud to offer this most desirable locomotive with our new liquid cooled engine/hydrostatic power train as well as battery powered electric. Available in 7.25", 7.5" and 12" gauge.
70 Ton Locomotive Features

GE 70 Ton Switching Locomotive
  • 3-Cylinder liquid-cooled industrial engine w Electric Start
  • 30 Amp Alernator
  • Full Instrumentation: Tach, Oil Pressure,Water Temp, Ammeter, Voltmeter, Air Pressure, Horn
  • Hi/Lo Headlights
  • Running Lights and Number Boards
  • Electronically controlled, Ultra-smooth hydrostat
    w Oil cooler on charge pump circuit

70 Ton Locomotive Specifications
Standard Features 2.5" Scale 3.75" E Scale
Engine Option 1 Kubota 22hp Diesel Kubota 22hp Diesel
Engine Option 2 Kubota 21hp Propane Kubota 21hp Propane
Engine Option 3 Kubota 21hp Gasoline Kubota 21hp Gasoline
Hydro-Stat Sauer-Danfos Model 42 Sauer-Danfos Model 42
Hydraulic Motors 2 - 1.2” CID 2 - 1.2” CID
Engine Option 4 Electric 4 5/8 HP
24 VDC 4,6 Batts
Electric 4 5/8 HP
24 VDC 4,6,8 Batts
Instrumentation Visible at Back of Cab Visible at Back of Cab
Length 84" 96"
Width 22.5" 26"
Height 36" 37"
Approx. Wt. 1400 lbs. 1600 lbs.

Full Engine Instrumentation
Full Instrumentation
