25 Ton Switcher Locomotive

2.5" Scale 25 Ton Narrow Gauge Switching Locomotive, Electric Drive

25 Ton Narrow Gauge Switching Locomotive

Although a number of companies built locomotives as small as 2 1/2 tons, 20-25 ton units were the most popular size of small industrial switchers. Davenport, G.E., Plymouth, Porter, Vulcan, Whitcomb and others all produced units in this class ­ including some diminutive cow & calf combinations!

Features

25 Ton Switching Locomotive
  • Solid riveted cab
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:
View 25 Ton Locomotive Drawings

Specifications
Standard Features 0-4-0 0-6-0
Number of 5/8 HP motors 1 2
Powered Axles 2 3
Power Module Rating 100 Amp 100 Amp
Battery Positions 2 or 4 2 or 4
Length 31" 31"
Width 18" 18"
Height 25" 25"
Approx. Wt. w/o Batteries> 150 lbs. 175 lbs.
Approx. Wt. w/ Batteries> 220-295 lbs. 250-325 lbs.
  Electric drive only.
Not available as a gas/hydraulic.
Electric drive only.
Not available as a gas/hydraulic.

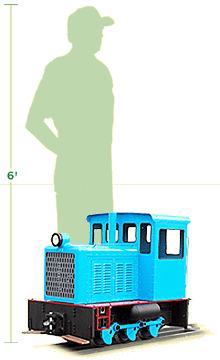

Size Comparison Locomotive vs Man
