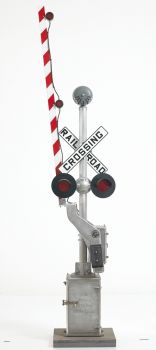

Drop Arm Crossing Gate Signal

Highly Detailed, Various Control Options, Battery Powered

Found in many configurations throughout the world, drop-arm signals not only provide audio and visual warnings (bells and lights), but lower a physical barrier to prevent pedestrians or vehicles from entering dangerous areas. When activated, our unit starts to flash and ring, and after 5 seconds, lowers the arm. The RMI unit is operated by a 12 VDC linear actuator. The standard model has 2 flashing lights mounted on the pole, additional lights on the arm, and an automatic gong. Options include additional flashing lights, cast base boxes, battery power supplies, and solar power options. The exclusive RMI control system is microprocessor controlled for the most demanding operating options. Various track sensor options are available from block shorting to inductive loop sensing.

Locomotive Features
  • Cast aluminum parts
  • 12 VDC Operation
  • Custom Arm Length
  • Ringer in cast protective housing
  • Optional box base to hold controller
  • Microprocessor Controller
  • Options for 1, 2, or 3 loop detectors
  • Options for dual approach and island operation
  • Manual override
  • Variable bell rate

Locomotive Specifications
Standard Features Master Slave
Mounting Box Base Pole Base
Controller Microprocessor Slaved from Master
Lights 2 Alternating Flasher 2 Alternating Flasher
Drop Arm Lights 1 Continuous (arm end)
2 Alternating
1 Continuous (arm end)
2 Alternating
Drop Arm Length 6 Foot Std.
Optional 11 Foot
6 Foot Std.
Optional 11 Foot
Signage Heavy Cast Aluminum
Cross Bucks
Heavy Cast Aluminum
Cross Bucks
