Steeple Cab Locomotive

2 or 4 Motor Electric Powered, Highly Detailed

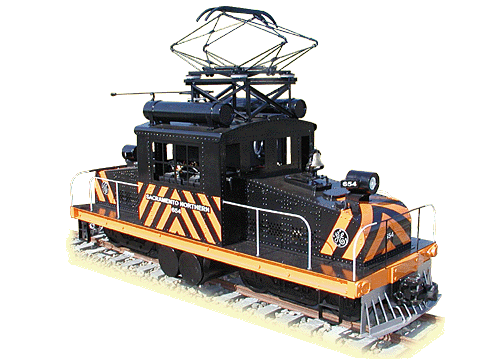

Steeple Cab Locomotive
Short line and interurban railroads flourished during the late 19th and early 20th centuries. Though the bulk of their traffic was passengers, distribution of local and mainline freight was also important. Delivery was most often accomplished by small electric locomotives. From the streets of Brooklyn and Kansas City to the fields of California's Central Valley, these diminutive locomotives labored mightily for nearly 100 years.
Steeple Cab Features

Steeple Cab Locomotive
  • Solid riveted cab
  • All steel construction
  • Moveable pantograph and trolley pole
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:
Steeple Cab Locomotive Specifications
Standard Features BB
Number of 5/8 HP motors 2 or 4
Powered Axles 4
Power Module Rating 160 Amp
Battery Positions 2, 4, or 6
Length 68"
Width 21"
Height 37"
Approx. Wt. w/o Batteries 305 lbs.
Approx. Wt. w/ Batteries 380-530 lbs.

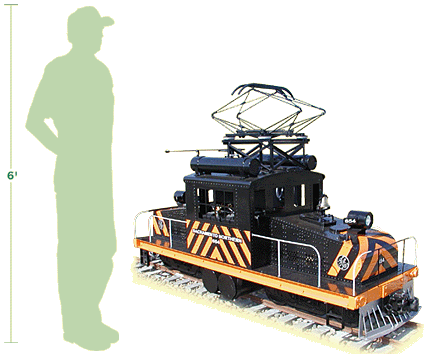

Steeple Cab Locomotive vs Man Size Comparison
