65 Ton Switcher Locomotive

2.5" Scale 65 Ton Narrow Gauge Switching Locomotive
Electric or Gas/Hydraulic Powered

65 Ton Switching Locomotive

45-100 Ton 2-truck locomotives were used for the heaviest industrial switching applications. They are still occasionally encountered in local service. Our 65 Ton 2-truck center cab switcher is typical of this handsome class of motive power.
65 Ton Locomotive Features

65 Ton Switching Locomotive
  • Solid riveted cab
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:

Specifications

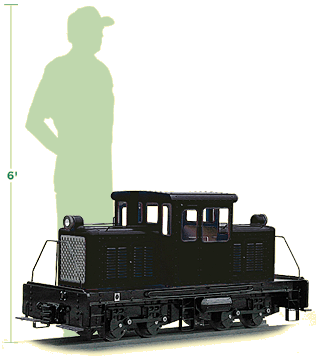

65 Ton Locomotive to Man Size Comparison
Standard Features BB
Number of 5/8 HP motors 2
Powered Axles 4
Power Module Rating 160 Amp
Battery Positions 2, 4, or 6
Length 59"
Width 20"
Height 25"
Approx. Wt. w/o Batteries 305 lbs.
Approx. Wt. w/ Batteries 380-530 lbs.
  Also available as a gas/hydraulic unit powered by a Honda 5.5 hp electric-start engine, hydrostatic pump and two hydraulic motors.
