Industrial Side Dump Car

Heavy Duty Industrial Side Dump Railroad Car in 2.5" and 3.75" Scale

 Industrial Side Dump Car
Call them "Skips", "Vee Type Tipping Wagons", or "Side Dump Cars", these rugged little cars have been manufactured in more countries, in greater numbers than any other type of 2' (600mm) gauge industrial cars. They were equally at home working in quarries, peat bogs and brick yards. They hauled ballast, fill, and sometimes even troops on the Western Front during World War I.
Side Dump Car Features
Side Dump Car Title

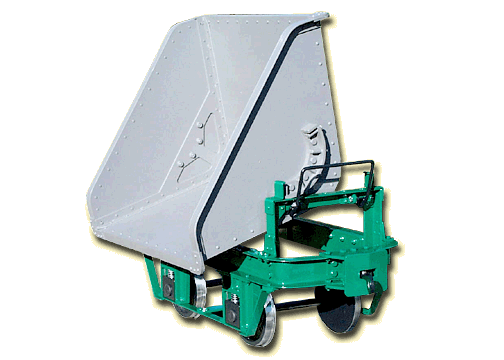

Side Dump Car Thumbnail
  • All steel construction
  • Solid steel rivet assembly
  • Formed curved frame rails
  • 5" ductile iron wheels
  • Coil spring suspension
  • Free running ball bearings
  • Bin tips easily to either side
  • Options:
    • Train Mountain Knuckle Couplers
    • Premium Decal Package
    • Available in a variety of colors

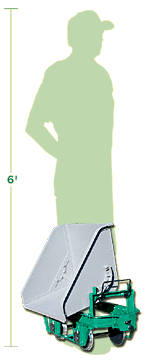

Side Dump Car vs Man Size Comparison

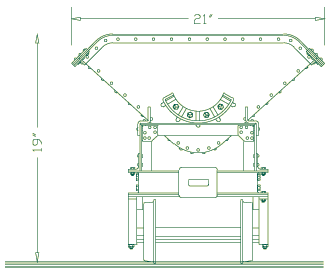

Side Dump Drawing Front View
 Side Dump Specifications
Specifications Dimensions
Length (over buffers) 27"
Width (overall) 20.75"
Height (above track) 19"
Weight (empty)  69.5 lbs.

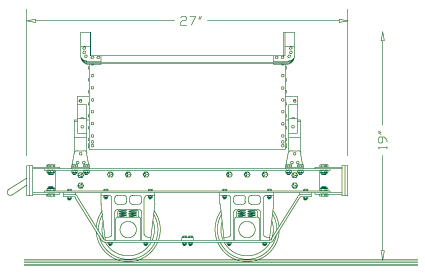

Side Dump Car Drawing Side View
