Nellie Inspection Car

3 3/4" Scale Track inspection cars, crew transports, mail delivery Trolley Cars

Nellie Inspection Car

Many small railroads had need for special, self-powered, rail vehicles. Track inspection cars, crew transports, mail and message delivery were essential jobs, but didn’t justify great expenditures for purpose-built units. Hence, many curious and whimsical units were created from discarded rail cars and automotive components. Our Nellie, Shady Lady, and Prospector represent the best of these unique oddities.

Whether you want to check your existing right-of-way or your new RMI Track System, you need a narrow- gauge Inspection Car. These cars are truly unique, rugged and useful, featuring our all-steel-and-rivet frame construction with real hardwood planking. Units may be towed or self-propelled, the latter capable of pulling several additional riding or freight cars.

Nellie Inspection Car Features

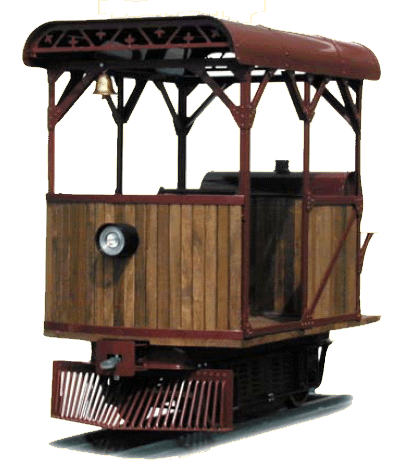

The Nellie Inspection Car
Nellie Inspection Car

  • Ride-behind car
  • Solid riveted frame, wood planking
  • All steel construction
  • Axle-mounted, heavy duty industrial gear boxes
  • 5/8 hp, continuous-duty, 4-brush 24Vdc motors
  • Solid-state programmable control and power modules
  • Options:
    • Unpowered version
    • Battery Charger
    • Knuckle Couplers
    • Available in a variety of colors
 Nelli Inspection Car Specifications

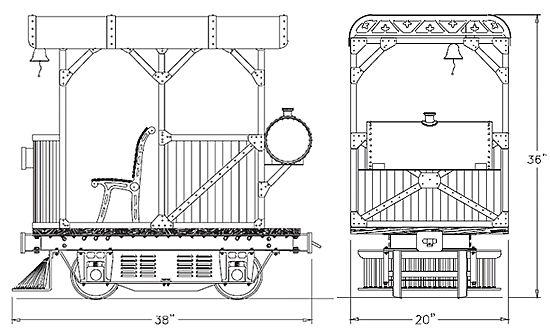

Nellie Inspection Car Drawing
Specifications 0-4-0
Number of 5/8 HP Motors 1
Powered Axels 2
Power Module Rating 100 Amp
Battery Positions 2
Length 38"
Width 20"
Height 36"
Weight w/o Batteries 300
Weight w Batteries 280
