Pre-Built True Tie© Track Panels

Available with Steel or Aluminum Rails at 7.25", 7.5" and Other Track Gauges

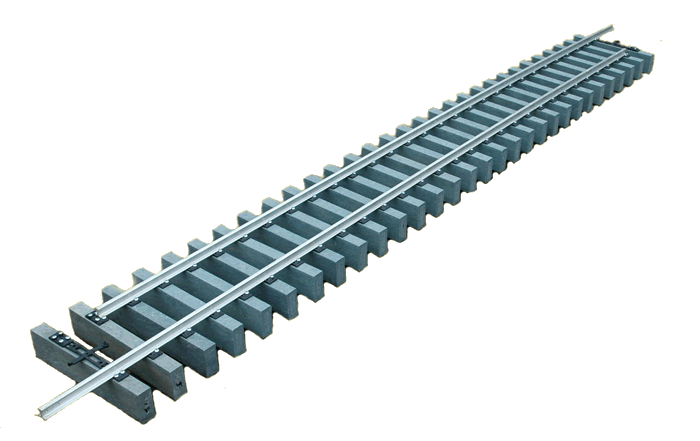

True Tie Track Panel
Quite simply, this is the most rugged and durable system available with more miles in service than any other in the world. Panels can be made with either aluminum or steel rail, and are composed of 30 plastic ties (spaced on 4" centers), tie plates, flange head track screws and steel rail joiners.
Track Panel Features
Track Panels
Pre-Built Track Panel
  • Ready-to-install, 10' sections
  • Uses steel or aluminum rail
  • Curved panels in the following radii:
    12.5', 18', 25', 30', 40', 50', 60', 75', 90', 105', 120', 135', 150', 165'
  • Available for 7.25", 7.5" and several other gauges
True Tie Track Panel
Track Panel Specifications
Specifications Dimensions
Length 10'
Width 16"
Height approx. 4.25"
Weight 95 lbs. (with steel rail)
